Wave Recorder LM2

Features

• No cable required, runs on 4 “D” cells
• Logs pressure and temperature
• Records up to 30 million lines on

 128 Mb MMC memory card

• Dimensions – 100 mm by 470 mm
• Weight - 4 kg
• Programmable sampling frequency
• Uses Keller PA-10 absolute pressure sensor

 Ranges

• Pressure 0..1 bar (0..10 m water column)
• Temperature 0..50 ° C
• Sampling frequency 25 per second..1 per hour

Other data

• PC interface - USB
• Sampling starts with magnetic key

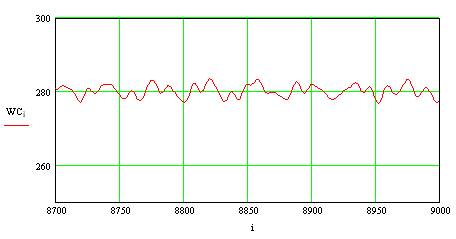

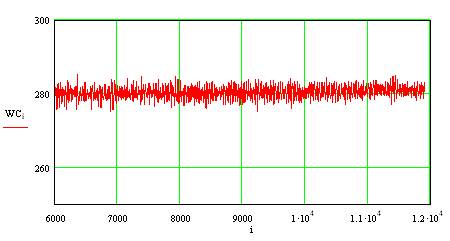

Result graphs (at 4 samples / second)

WC – water column height above sensor [cm]

i – sample number

More photos

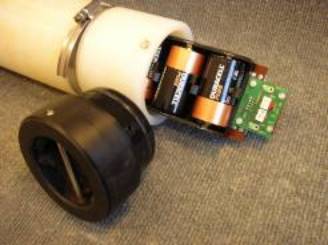

With battery compartment open

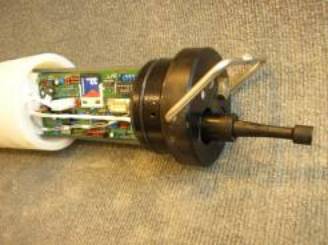

Electronics and memory card

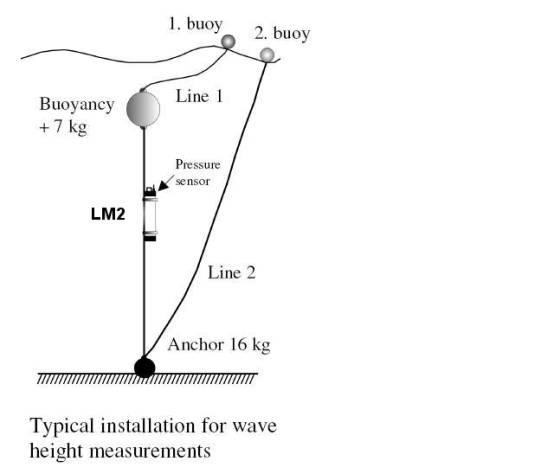

Wave recorder installation example

Download flyer in pdf format (403 kB)

Download GenFile.exe (421 kB)
